LD3800304N6R01

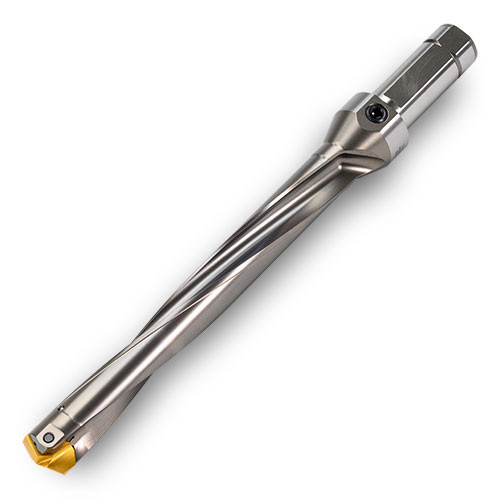

Drill; 1.4961″ to 1.5315″ Dia. × 1-1/4″ Shank Dia. × 12.201″ LU × 3.16″ Shank Length ; 8D
| Usable Length (LU) | 12.201″ | Shank Length (LS) | 3.16″ |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 38 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 1.4961″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 1.5315″ | Body Material | Steel |
| Functional Length (LF) | 14.488″ | Flange Diameter (DF) | 2.165″ |
Product Features
| Family Description | Requires piloting with 3xD body Coolant Thru Holds +.002/-.000 on Hole Diameter Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications | Country of Origin | S.Korea |
Shipping Info
Package Weight
6.316
