LD2100063N5R01

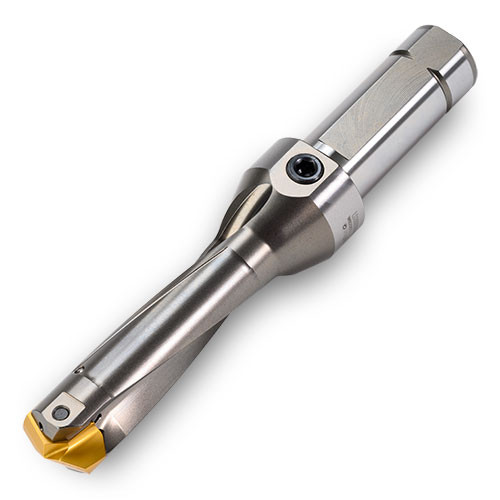

Drill; 0.8267″ to 0.8622″ Dia. × 1″ Shank Dia. × 2.61″ LU × 3.16″ Shank Length ; 3D
| Usable Length (LU) | 2.61″ | Shank Length (LS) | 3.16″ |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 21 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.8267″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.8622″ | Body Material | Steel |
| Functional Length (LF) | 4.075″ | Flange Diameter (DF) | 1.26″ |
Product Features
| Family Description | Coolant Thru Holds +.002/-.000 on Hole Diameter Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.367
