D3N 200-100-25R-5D

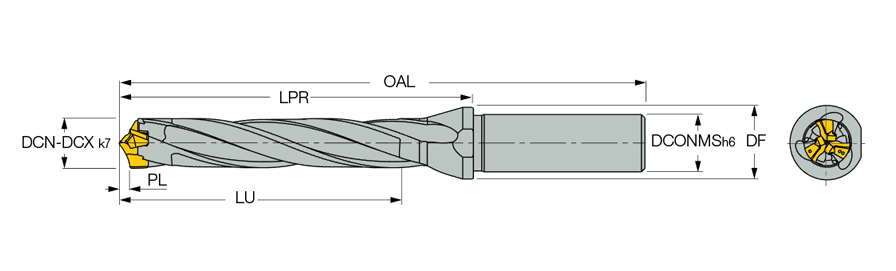

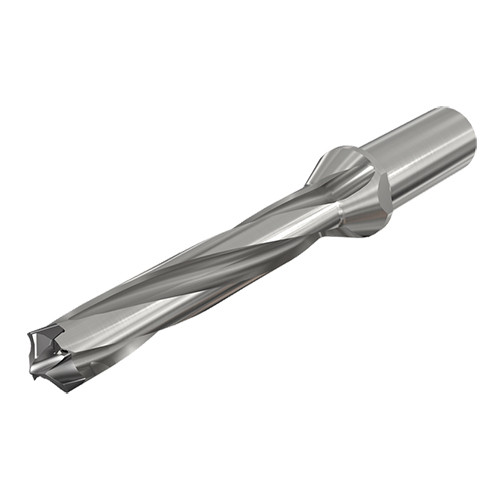

Drill; 20 mm Dia. × 20 mm Min. Dia. × 20.9 mm Max. Dia. × 25 mm Shank Dia. × 197.24 mm OAL × 104.32 mm LU × 56 mm Shank Length ; Series STAW
| Cutting Diameter (DC) | 20 mm | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 104.32 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 200 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 4.32 mm |
| Insert Seat Size Code (SSC) | 20 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 20 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 20.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 141.2 mm | Flange Diameter (DF) | 32 mm |
| Overall Length (OAL) | 197.24 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 56 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank, drilling depth 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.999
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
