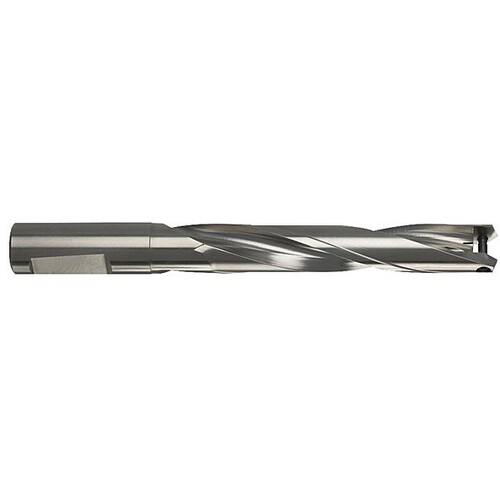

17.2MM BODY-18MM SHK 5XD HT800WP
Drill; 17.5 mm to 17.99 mm Dia. × 17.5 mm Min. Dia. × 17.99 mm Max. Dia. × 18 mm Shank Dia. × 170 mm OAL × 93.4 mm LU × 48 mm Shank Length ; 5D ; whistle notch Shank
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 17.5 mm to 17.99 mm | Shank Length (LS) | 48 mm |
| Usable Length (LU) | 93.4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 5D | Cutting Direction (HAND) | Right Hand |
| Shank Type | whistle notch | Coating | Nickel |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Standard Pack Size | 1 |
| Cutting Diameter Minimum (DCN) | 17.5 mm | Body Material | Tool steel |
| Cutting Diameter Maximum (DCX) | 17.99 mm | Decimal Equivalent | 0.6772″ |
| Overall Length (OAL) | 170 mm |
Product Features
| Family Description | 17.2MM BODY–18MM SHK 5XD HT800WP | Country of Origin | Germany |
Shipping Info
Package Weight
1.493
