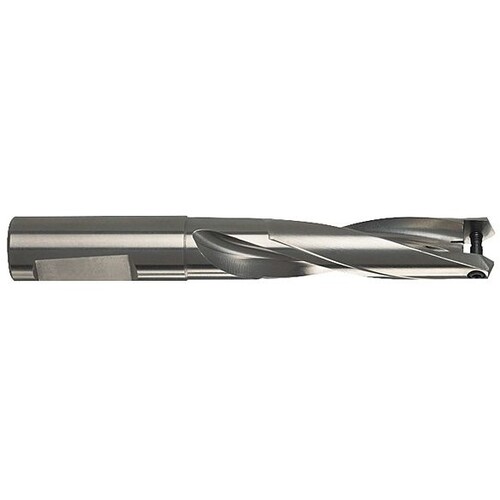

23.2MM BODY-25MM SHK 3XD HT800WP
Drill; 23.5 mm to 23.99 mm Dia. × 23.5 mm Min. Dia. × 23.99 mm Max. Dia. × 25 mm Shank Dia. × 173 mm OAL × 76.5 mm LU × 56 mm Shank Length ; 3D ; whistle notch Shank
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 23.5 mm to 23.99 mm | Overall Length (OAL) | 173 mm |
| Usable Length (LU) | 76.5 mm | Shank Length (LS) | 56 mm |
| Length Group | 3D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | whistle notch | Cutting Direction (HAND) | Right Hand |
| Tool Type | HT 800 Body | Coating | Nickel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Standard Pack Size | 1 |
| Cutting Diameter Minimum (DCN) | 23.5 mm | Body Material | Tool steel |
| Cutting Diameter Maximum (DCX) | 23.99 mm | Decimal Equivalent | 0.9134″ |
Product Features
| Family Description | 23.2MM BODY–25MM SHK 3XD HT800WP | Country of Origin | Germany |
Shipping Info
Package Weight
2.709
