DCN 130-039-16R-3D

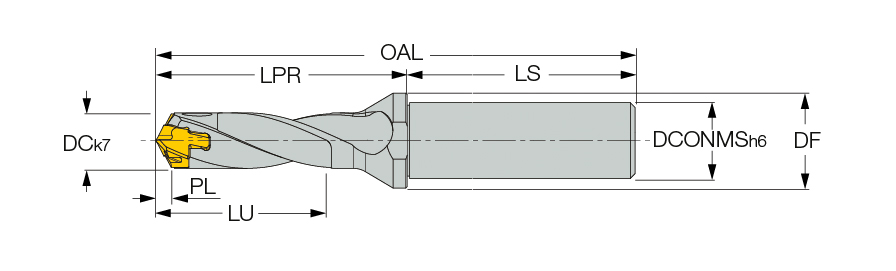

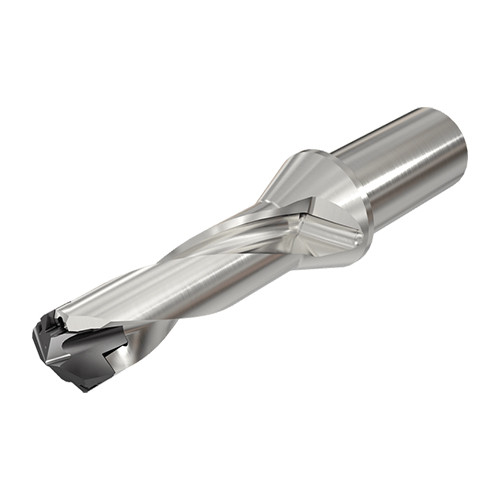

Drill; 13 mm Dia. × 13 mm Min. Dia. × 13.49 mm Max. Dia. × 16 mm Shank Dia. × 104.6 mm OAL × 40.96 mm LU × 48 mm Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 13 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 40.96 mm | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 130 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 1.96 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 13.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 13 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 13.49 mm | Flange Diameter (DF) | 20 mm |
| Protruding Length (LPR) | 56.6 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Functional Length (LF) | 54.23 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 104.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 48 mm |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
