DCM 0394-315-063A-8D

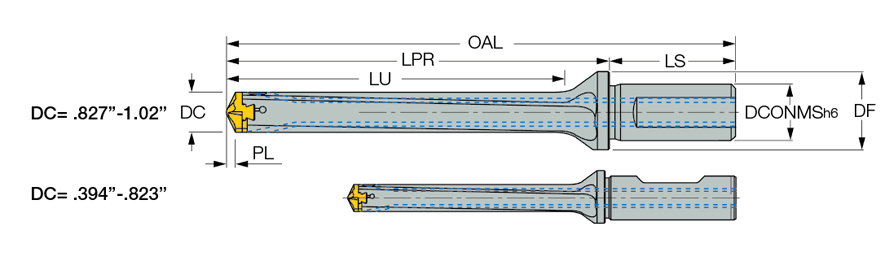

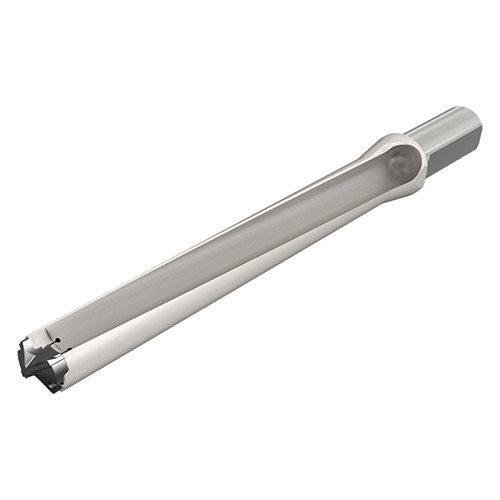

Drill; 0.394″ Dia. × 0.394″ Min. Dia. × 0.429″ Max. Dia. × 5/8″ Shank Dia. × 5.59″ OAL × 3.15″ LU × 1.89″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 0.394″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.15″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | IDI 100-SG |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.072″ |
| Insert Seat Size Code (SSC) | 10.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.394″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.429″ | Body Material | Steel |
| Protruding Length (LPR) | 3.7″ | Flange Diameter (DF) | 0.79″ |
| Functional Length (LF) | 3.628″ | Decimal Equivalent | 0.394″ |
| Overall Length (OAL) | 5.59″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
