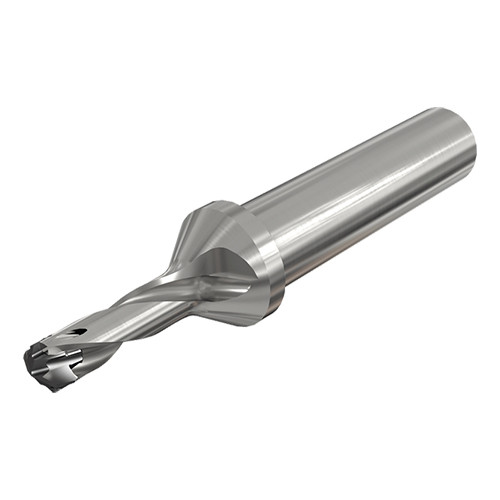

DCN 1102-331-125R-3D

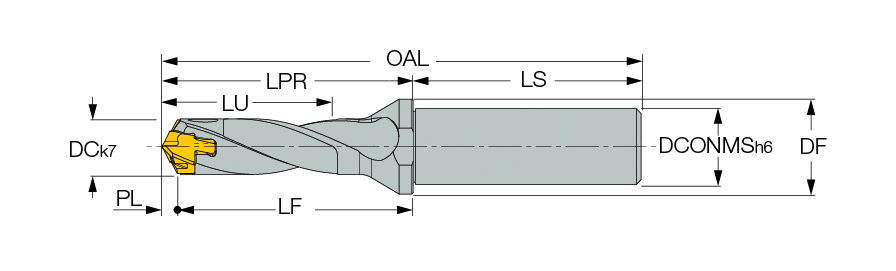

Drill; 1.102″ Dia. × 1.102″ Min. Dia. × 1.141″ Max. Dia. × 1-1/4″ Shank Dia. × 7.41″ OAL × 3.474″ LU × 2.36″ Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 1.102″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.474″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 280 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.167″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 28.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 1.102″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.141″ | Flange Diameter (DF) | 1.65″ |
| Protruding Length (LPR) | 5.05″ | Decimal Equivalent | 1.102″ |
| Functional Length (LF) | 4.849″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Overall Length (OAL) | 7.41″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
2.077
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
