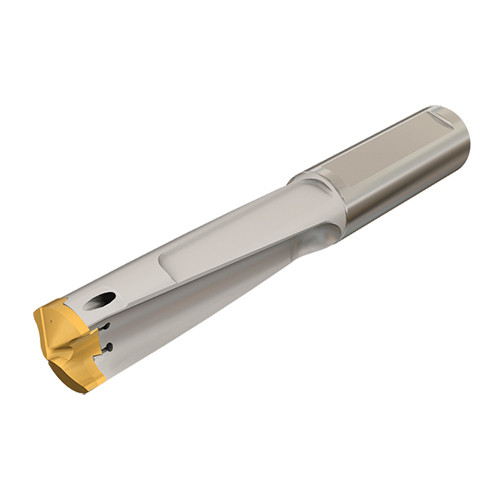

DCM 0709-236-070B-3.5D

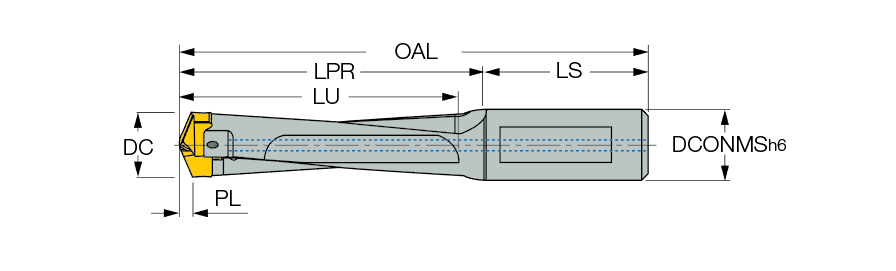

Drill; 0.709″ to 0.744″ Dia. × 0.709″ Shank Dia. × 4.972″ OAL × 2.362″ LU × 1.89″ Shank Length ; 4xD
| Usable Length (LU) | 2.362″ | Shank Length (LS) | 1.89″ |
| Application | | Chamfering | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 18.0 | Master Insert Identification (MIID) | IDI 180 |
| Cutting Diameter Minimum (DCN) | 0.709″ | Point Length (PL) | 0.12901″ |
| Cutting Diameter Maximum (DCX) | 0.744″ | Series/List # | STAW |
| Protruding Length (LPR) | 3.08″ | Angle | 140 Degrees |
| Functional Length (LF) | 2.954″ | Body Material | Steel |
| Overall Length (OAL) | 4.972″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | UNICHAMDRILL exchangeable head drills without flange and with flat shank, drilling depth 3.5xD, suitable for chamfering holder | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Package Weight
0.481
