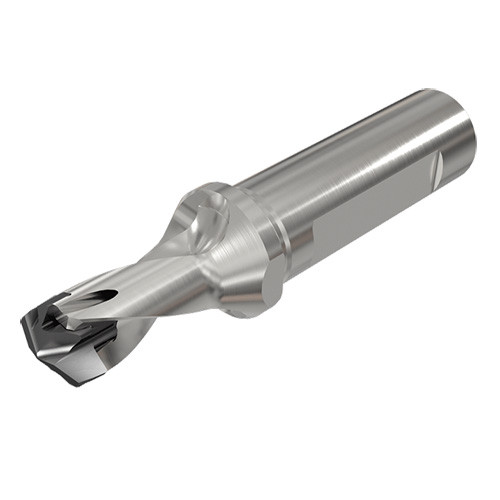

DCN 0748-112-100A-1.5D

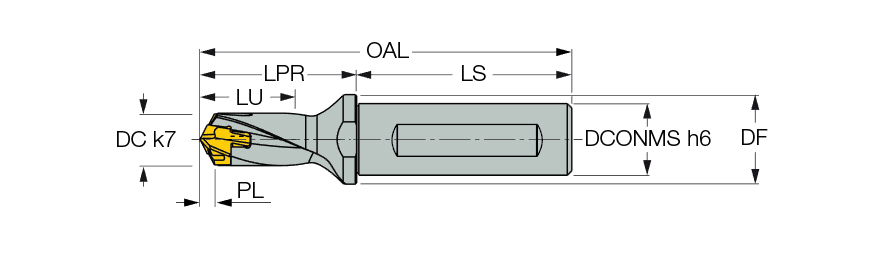

Drill; 0.748″ Dia. × 0.748″ Min. Dia. × 0.786″ Max. Dia. × 1″ Shank Dia. × 4-1/2″ OAL × 1.235″ LU × 2.2″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 0.748″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.235″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 190 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.113″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 19.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.748″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.786″ | Flange Diameter (DF) | 1.26″ |
| Protruding Length (LPR) | 2.3″ | Decimal Equivalent | 0.748″ |
| Functional Length (LF) | 2.164″ | Body Diameter Reduced (BDRED) | 1.26″ |
| Overall Length (OAL) | 4-1/2″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 2.2″ |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Length
5.70000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.756
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
