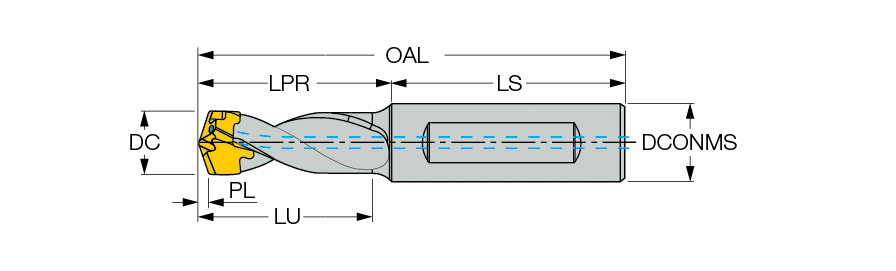

DSM 0551-083-063B-1.5D
Drill; 0.551″ Dia. × 0.551″ Min. Dia. × 0.587″ Max. Dia. × 5/8″ Shank Dia. × 146.9 mm OAL × 0.83″ LU × 1.89″ Shank Length ; 2D ; Series STAW
| Cutting Diameter (DC) | 0.551″ | Functional Length (LF) | 145 mm |
| Usable Length (LU) | 0.83″ | Overall Length (OAL) | 146.9 mm |
| Length Group | 2D | Shank Length (LS) | 1.89″ |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 14.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.551″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.587″ | Body Material | Steel |
| Protruding Length (LPR) | 1.67″ | Decimal Equivalent | 0.551″ |
Product Features
| Family Description | CHAMDRILLJET 1.5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.0008 in average conditions. However, it can be higher or lower according to machine and tooling conditions. Do not mount smaller drilling heads than specified range for drill body. |
Shipping Info
Package Weight
0.253
