MNCNT 105-400-MF16X1-T2

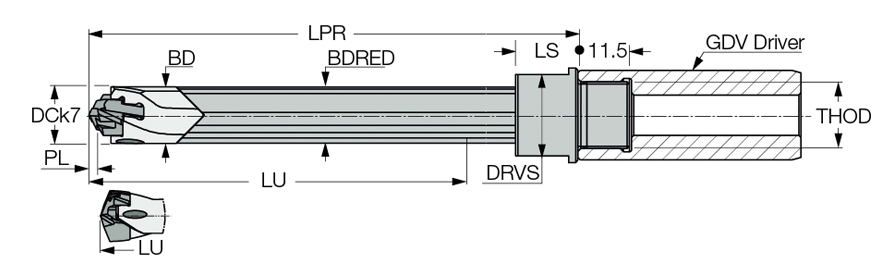

Drill; 0.413″ Dia. × 0.413″ Min. Dia. × 0.433″ Max. Dia. × 16 mm Shank Dia. × 146.9 mm OAL × 15.8232″ LU × 0.45″ Shank Length ; 38D ; Series STAW
| Cutting Diameter (DC) | 0.413″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 15.8232″ | Measurement Type | Inch |
| Length Group | 38D | Master Insert Identification (MIID) | ICP 105 |
| Application | | Drilling | Gundrill | | Point Length (PL) | 0.07519″ |
| Tool Type | Indexable Insert Drills | Series/List # | STAW |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Angle | 140 Degrees |
| Insert Seat Size Code (SSC) | 10.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.413″ | Flange Diameter (DF) | 0.398″ |
| Cutting Diameter Maximum (DCX) | 0.433″ | Decimal Equivalent | 0.413″ |
| Protruding Length (LPR) | 17.323″ | Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Functional Length (LF) | 145 mm | Body Diameter (BD) | 0.402″ |
| Overall Length (OAL) | 146.9 mm | Body Diameter Reduced (BDRED) | 0.398″ |
| Shank Length (LS) | 0.45″ | Drive Size (DRVS) | 0.63″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | Country of Origin | Israel |
Shipping Info
Package Weight
0.573
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
