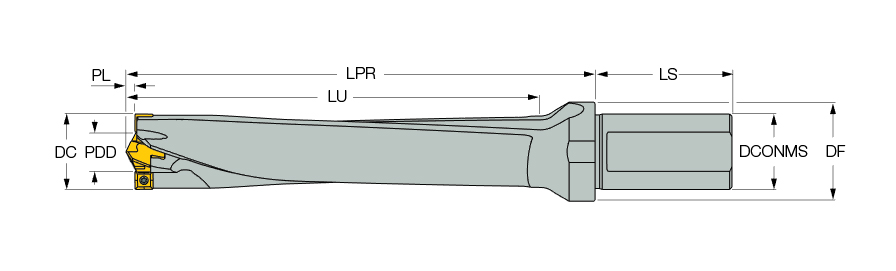

MNC1125-563-125-0630-07-5

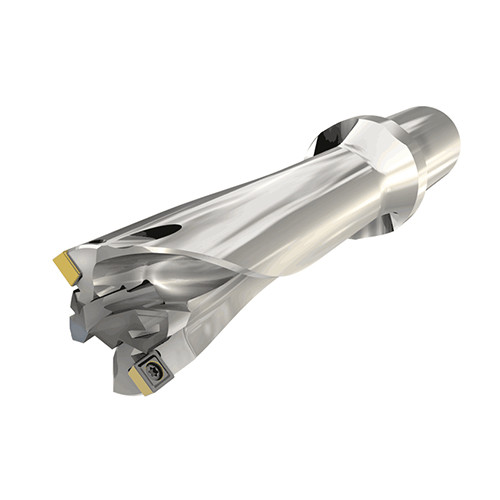

Drill; 1-1/8″ Dia. × 1-1/4″ Shank Dia. × 9.572″ OAL × 5-3/4″ LU × 2.36″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 1-1/8″ | Measurement Type | Inch |
| Usable Length (LU) | 5-3/4″ | Master Insert Identification (MIID) | SOGX 070305-W |
| Application | | Drilling | | Point Length (PL) | 0.122″ |
| Tool Type | Indexable Insert Drills | Series/List # | STAW |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Angle | 140 Degrees |
| Protruding Length (LPR) | 7.21″ | Body Material | Steel |
| Functional Length (LF) | 7.09″ | Flange Diameter (DF) | 1.653″ |
| Overall Length (OAL) | 9.572″ | Decimal Equivalent | 1.125″ |
| Shank Length (LS) | 2.36″ | Body Diameter (BD) | 0.63″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Diameter Reduced (BDRED) | 1.653″ |
| Cutting Item Count (CICT) | 1 | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.004/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Package Weight
2.154
