DCN 0906-453-125A-5D

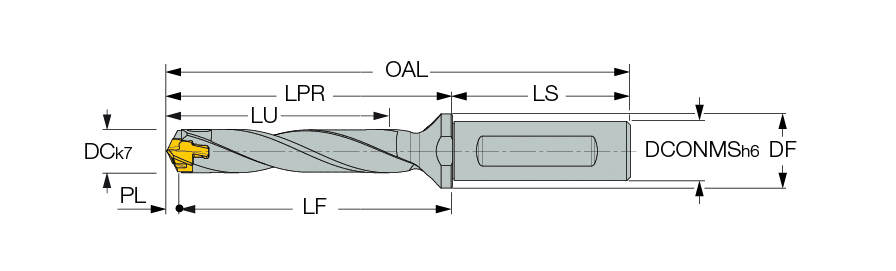

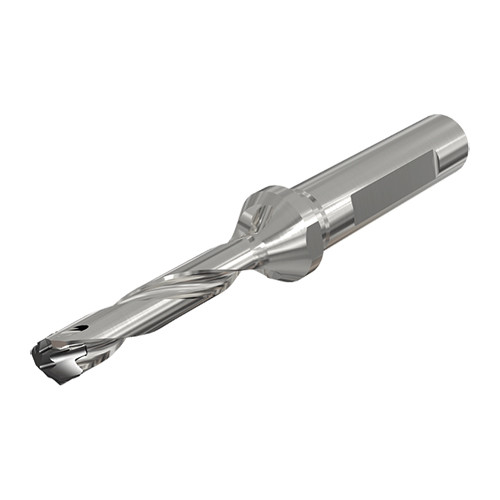

Drill; 0.906″ Dia. × 0.906″ Min. Dia. × 0.944″ Max. Dia. × 1-1/4″ Shank Dia. × 8.32″ OAL × 4.664″ LU × 2.36″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 0.906″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4.664″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 230 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.136″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 23.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.906″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.944″ | Flange Diameter (DF) | 1.65″ |
| Protruding Length (LPR) | 5.96″ | Decimal Equivalent | 0.906″ |
| Functional Length (LF) | 5.795″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Overall Length (OAL) | 8.32″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 2.36″ |
Product Features
| Family Description | SUMOCHAM 5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Length
6.00000
Package Width
5.00000
Package Height
2.00000
Package Weight
1.657
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
