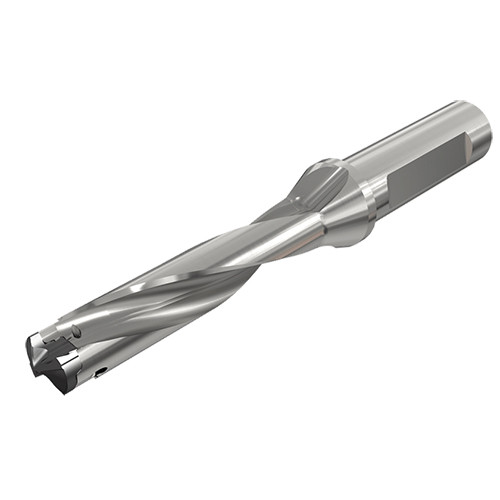

DCM 0453-226-063A-5D
Drill; 0.453″ Dia. × 0.453″ Min. Dia. × 0.469″ Max. Dia. × 5/8″ Shank Dia. × 4.76″ OAL × 2.26″ LU × 1.89″ Shank Length ; Series STAW

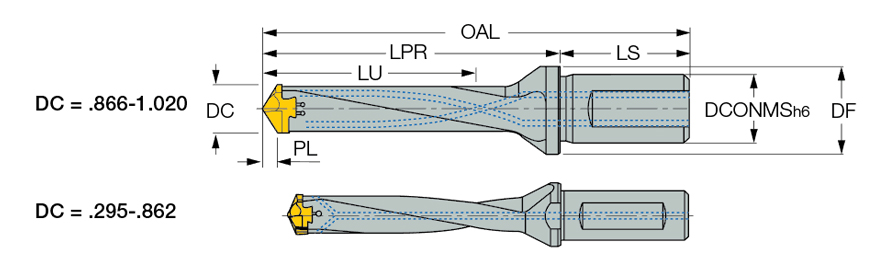

| Cutting Diameter (DC) | 0.453″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.26″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 115-SG |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.082″ |
| Insert Seat Size Code (SSC) | 11.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.453″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.469″ | Body Material | Steel |
| Protruding Length (LPR) | 2.87″ | Flange Diameter (DF) | 0.79″ |
| Functional Length (LF) | 2.788″ | Decimal Equivalent | 0.453″ |
| Overall Length (OAL) | 4.76″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Package Weight
0.319
