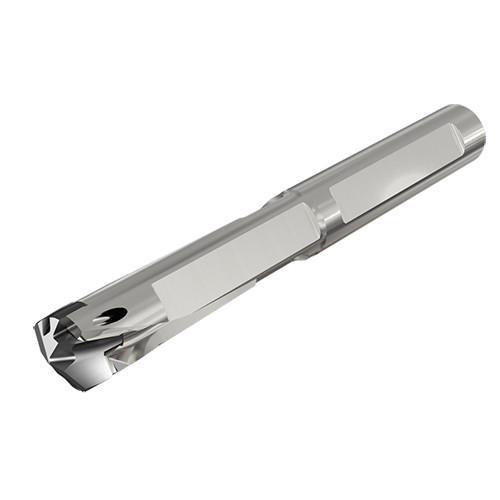

DCNS 0630-189-063B-3D

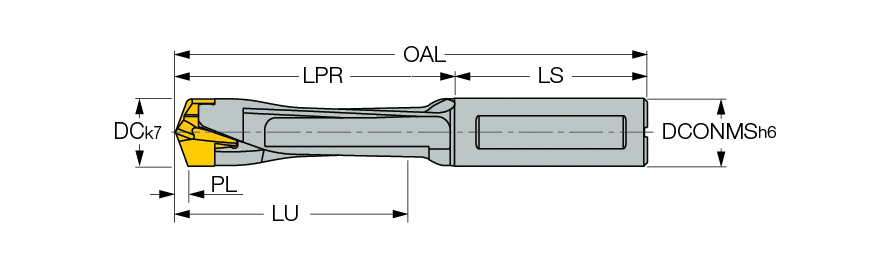

Drill; 0.63″ Dia. × 0.63″ Min. Dia. × 0.669″ Max. Dia. × 0.63″ Shank Dia. × 4.634″ OAL × 1.985″ LU × 1.89″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 0.63″ | Shank Length (LS) | 1.89″ |
| Usable Length (LU) | 1.985″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Chamfering | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 160 |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Point Length (PL) | 0.09527″ |
| Insert Seat Size Code (SSC) | 16.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.63″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.669″ | Body Material | Steel |
| Protruding Length (LPR) | 2.74″ | Flange Diameter (DF) | 0″ |
| Functional Length (LF) | 2.63″ | Decimal Equivalent | 0.63″ |
| Overall Length (OAL) | 4.634″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head drills without a flange and one flat shank, drilling depth 3xD. Suitable for chamfering holders. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.22
