DCN 090-014-12R-1.5D

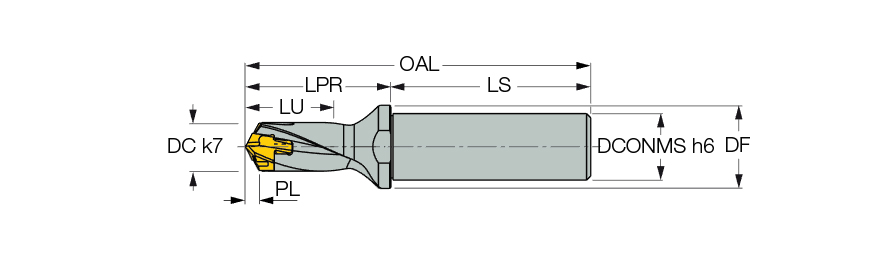

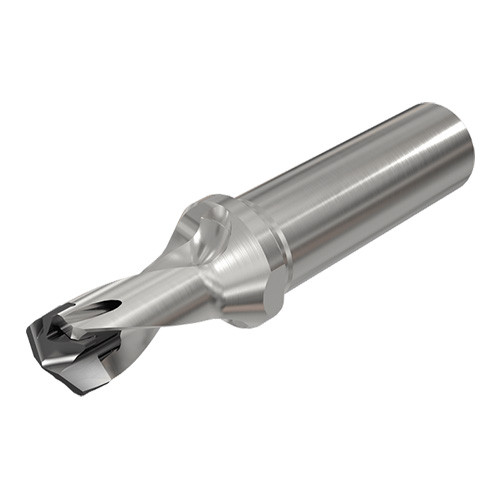

Drill; 9 mm Dia. × 9 mm Min. Dia. × 9.49 mm Max. Dia. × 12 mm Shank Dia. × 74.3 mm OAL × 14.85 mm LU × 45 mm Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 9 mm | Shank Length (LS) | 45 mm |
| Usable Length (LU) | 14.85 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 090 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Point Length (PL) | 1.35 mm |
| Insert Seat Size Code (SSC) | 9.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 9 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 9.49 mm | Body Material | Steel |
| Protruding Length (LPR) | 29.3 mm | Flange Diameter (DF) | 16 mm |
| Functional Length (LF) | 27.66 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Overall Length (OAL) | 74.3 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 1.5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.192
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
