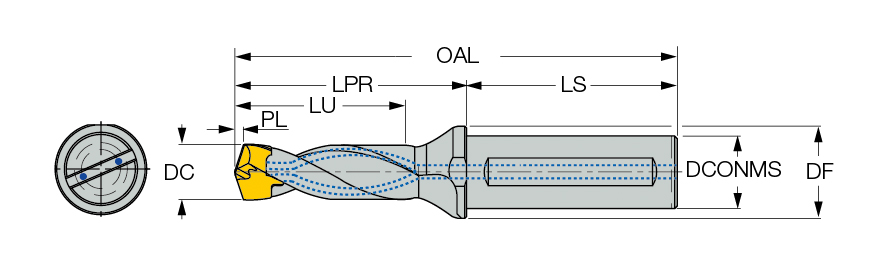

DSM 150-045-20A-3D
Drill; 15 mm to 15.9 mm Dia. × 20 mm Shank Dia. × 45 mm LU × 50 mm Shank Length ; 3D
| Cutting Diameter (DC) | 15 mm | Shank Length (LS) | 50 mm |
| Usable Length (LU) | 45 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 3D | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDP 150 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 15.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 15 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 15.9 mm | Flange Diameter (DF) | 25 mm |
| Protruding Length (LPR) | 67.5 mm | Decimal Equivalent | 15 mm |
| Functional Length (LF) | 145 mm | Body Diameter Reduced (BDRED) | 25 mm |
| Overall Length (OAL) | 146.9 mm |
Product Features
| Family Description | CHAMDRILLJET, 3xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions. |
Shipping Info
Package Weight
0.465
