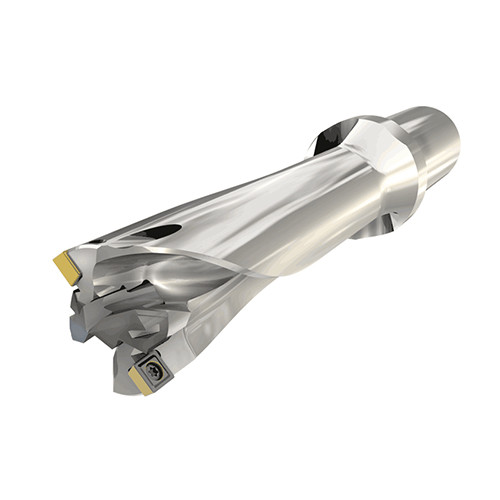

MNC 420-210 A40-249-10-5D

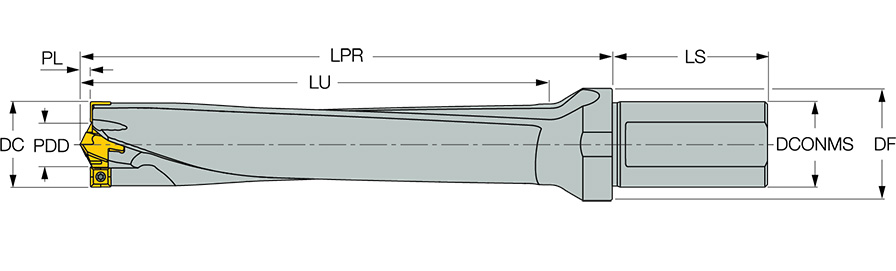

Drill; 42 mm Dia. × 40 mm Shank Dia. × 322.75 mm OAL × 214.77 mm LU × 68 mm Shank Length ; Series STAW
| Cutting Diameter (DC) | 42 mm | Measurement Type | Metric |
| Usable Length (LU) | 214.77 mm | Master Insert Identification (MIID) | SOGT 100408-W |
| Application | | Drilling | | Point Length (PL) | 4.77 mm |
| Tool Type | Indexable Insert Drills | Series/List # | STAW |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 254.8 mm | Body Material | Steel |
| Functional Length (LF) | 250 mm | Flange Diameter (DF) | 50 mm |
| Overall Length (OAL) | 322.75 mm | Body Diameter (BD) | 24.9 mm |
| Shank Length (LS) | 68 mm | Body Diameter Reduced (BDRED) | 50 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Item Count (CICT) | 1 |
Product Features
| Family Description | Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Package Weight
5.088
Related Documentation
Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions.
