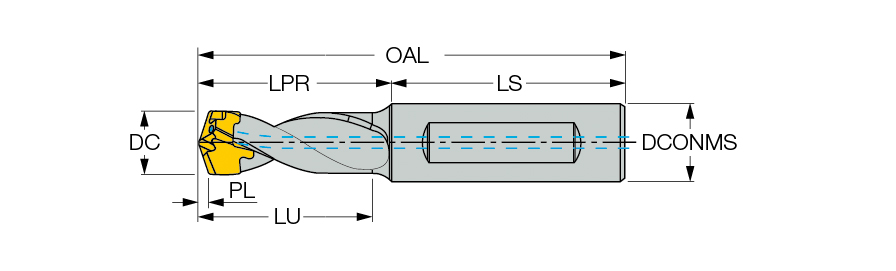

DSM 170-026-20B-1.5D
Drill; 17 mm Dia. × 17 mm Min. Dia. × 17.9 mm Max. Dia. × 20 mm Shank Dia. × 146.9 mm OAL × 26 mm LU × 50 mm Shank Length ; 2D ; Series STAW
| Cutting Diameter (DC) | 17 mm | Overall Length (OAL) | 146.9 mm |
| Usable Length (LU) | 26 mm | Shank Length (LS) | 50 mm |
| Length Group | 2D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | IDP 170 |
| Insert Seat Size Code (SSC) | 17.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 17 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 17.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 50.5 mm | Decimal Equivalent | 17 mm |
| Functional Length (LF) | 145 mm |
Product Features
| Family Description | CHAMDRILLJET 1.5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.02 in average conditions. However, it can be higher or lower according to machine and tooling conditions. |
Shipping Info
Package Weight
0.434
