DCM 120-096-16A-8D

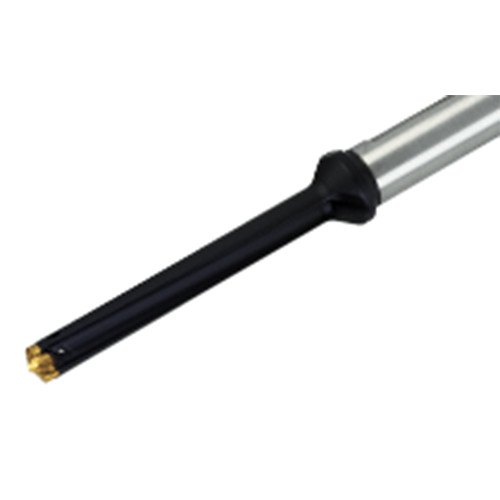

Drill; 12 mm to 12.9 mm Dia. × 16 mm Shank Dia. × 160.3 mm OAL × 96 mm LU × 48 mm Shank Length ; 8xD

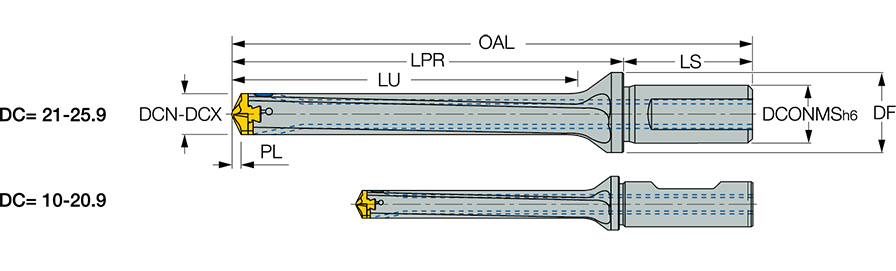

| Usable Length (LU) | 96 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Master Insert Identification (MIID) | IDI 120-SG |
| Insert Seat Size Code (SSC) | 12.0 | Point Length (PL) | 2.18 mm |
| Cutting Diameter Minimum (DCN) | 12 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 112.3 mm | Body Material | Steel |
| Functional Length (LF) | 110.12 mm | Flange Diameter (DF) | 20 mm |
| Overall Length (OAL) | 160.3 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Shank Length (LS) | 48 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
