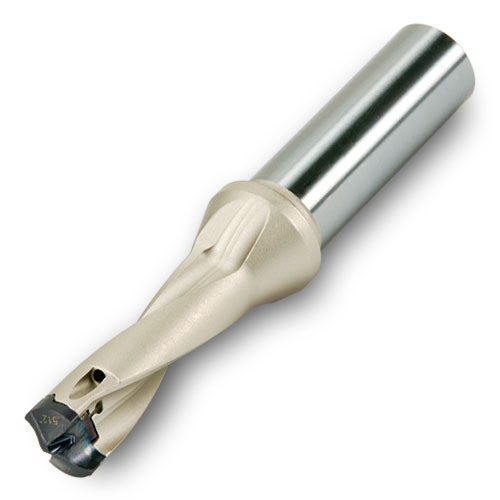

YD2100063C8R01

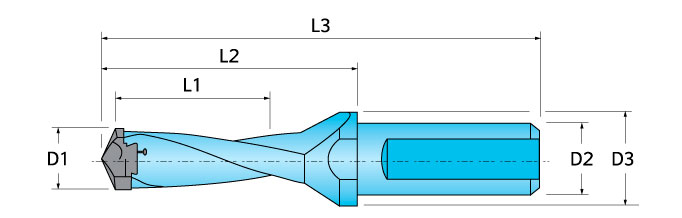

Drill; 0.8268″ to 0.8622″ Dia. × 1″ Shank Dia. × 2.48″ LU × 2.2″ Shank Length ; 3D
| Usable Length (LU) | 2.48″ | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 3D | Cutting Item Count (CICT) | 1 |
| Application | | Drill Mill | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 21 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.8268″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.8622″ | Flange Diameter (DF) | 1.26″ |
| Shank Length (LS) | 2.2″ |
Product Features
| Family Description | L:D Ratio - 3:1 Geometry: Positive **OBSOLETE PRODUCT LINE** Refer to the following for stocked alternative: GoldTwist, series TD-3xD Replaceable Tip Drill | Country of Origin | Israel |
Shipping Info
Package Weight
1.08
