DSM 0709-354-100A-5D

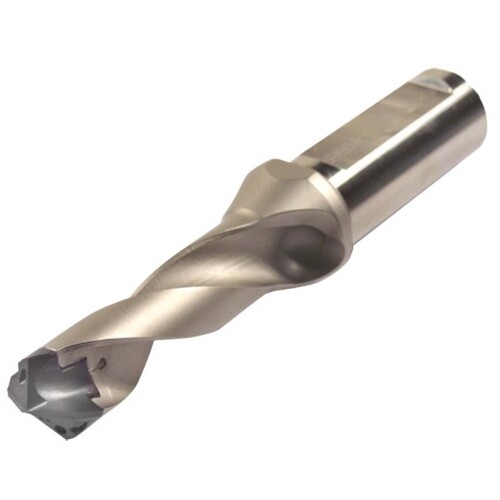

Drill; 0.709″ Dia. × 0.709″ Min. Dia. × 0.744″ Max. Dia. × 1″ Shank Dia. × 146.9 mm OAL × 3.54″ LU × 2.2″ Shank Length ; 5D ; Series STAW
| Cutting Diameter (DC) | 0.709″ | Overall Length (OAL) | 146.9 mm |
| Usable Length (LU) | 3.54″ | Shank Length (LS) | 2.2″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 18.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.709″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.744″ | Flange Diameter (DF) | 1.26″ |
| Protruding Length (LPR) | 4.32″ | Decimal Equivalent | 0.709″ |
| Functional Length (LF) | 145 mm | Body Diameter Reduced (BDRED) | 1.26″ |
Product Features
| Family Description | CHAMDRILLJET 5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions. Do not mount smaller drilling heads than specified range for drill body. |
