DCT 0390-106-063B-7/16UNF
Drill; 0.39″ Dia. × 0.382″ Min. Dia. × 0.392″ Max. Dia. × 5/8″ Shank Dia. × 3.79″ OAL × 1.49″ LU × 1.89″ Shank Length ; Series STAW

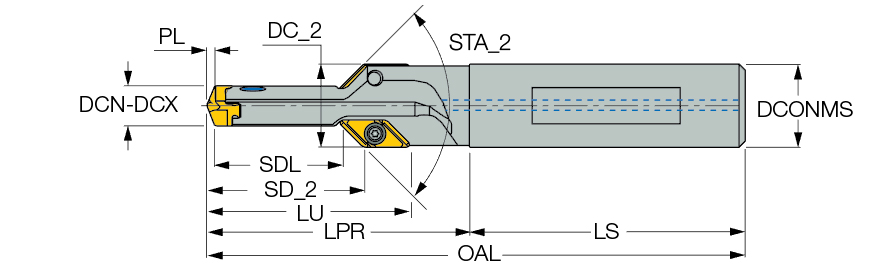

| Cutting Diameter (DC) | 0.39″ | Shank Length (LS) | 1.89″ |
| Cutting Diameter 2 (DC_2) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.49″ | Cutting Item Count (CICT) | 1 |
| Application | | Chamfering | Drilling | | Measurement Type | Inch |
| Tool Type | indexable head drills | Point Length (PL) | 0.07″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 9.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.382″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.392″ | Decimal Equivalent | 0.39″ |
| Protruding Length (LPR) | 1.9″ | Step Diameter Length (SDL) | 1.06″ |
| Overall Length (OAL) | 3.79″ | Body Diameter (BD) | 0.63″ |
Product Features

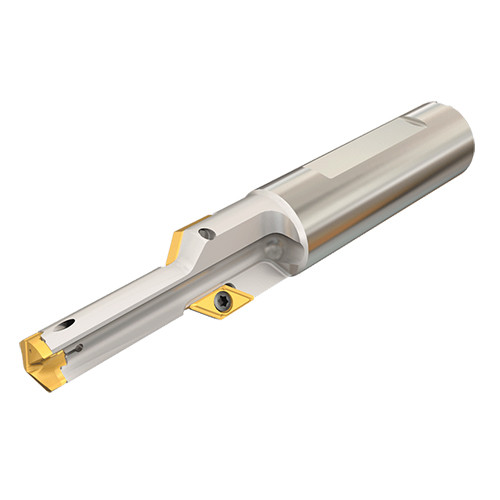

| Family Description | CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.366
