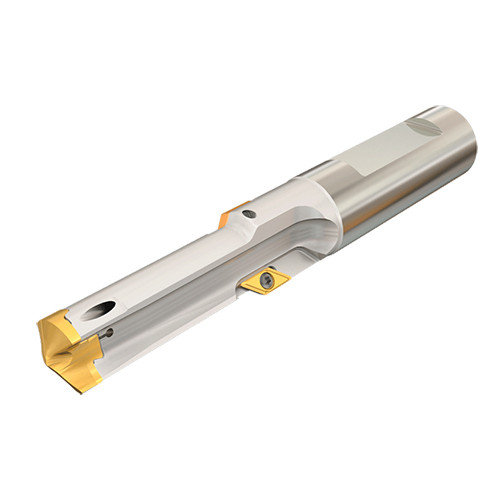

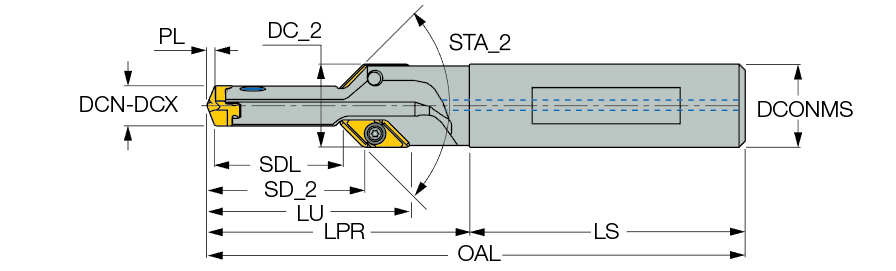

DCT 120-035-16B-M14
Drill; 12 mm Dia. × 12 mm Min. Dia. × 12.9 mm Max. Dia. × 16 mm Shank Dia. × 108.18 mm OAL × 45.1 mm LU × 48 mm Shank Length ; Series STAW
| Cutting Diameter (DC) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter 2 (DC_2) | 16 mm | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 45.1 mm | Measurement Type | Metric |
| Application | | Chamfering | Drilling | | Master Insert Identification (MIID) | IDI 120 |
| Tool Type | Chamfering drills | Point Length (PL) | 2.18 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 12.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 12 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Step Diameter Length (SDL) | 34.9 mm |
| Protruding Length (LPR) | 60.2 mm | Body Diameter (BD) | 16 mm |
| Overall Length (OAL) | 108.18 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 48 mm |
Product Features
| Family Description | CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.392
