DCM 180-090-25A-5D

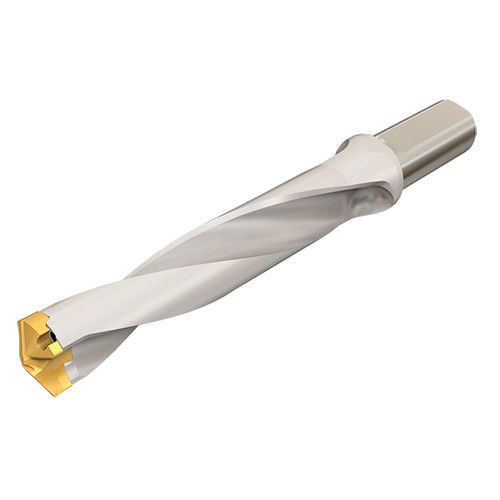

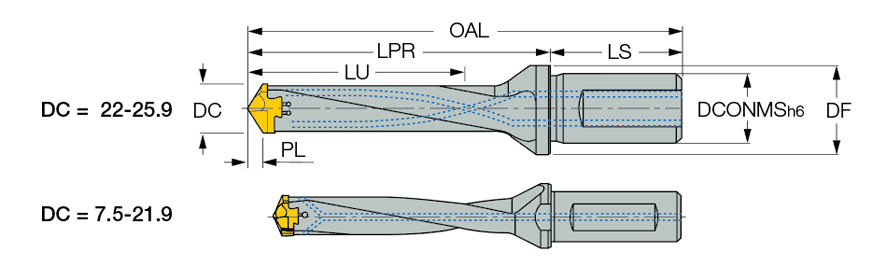

Drill; 18 mm Dia. × 18 mm Min. Dia. × 18.9 mm Max. Dia. × 25 mm Shank Dia. × 170.3 mm OAL × 90 mm LU × 56 mm Shank Length ; Series STAW
| Cutting Diameter (DC) | 18 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 90 mm | Cutting Item Count (CICT) | 1 |
| Application | | Chamfering | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 180-SG |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.28 mm |
| Insert Seat Size Code (SSC) | 18.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 18 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 18.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 114.3 mm | Flange Diameter (DF) | 32 mm |
| Functional Length (LF) | 111.02 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Overall Length (OAL) | 170.3 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 56 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank drilling depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
