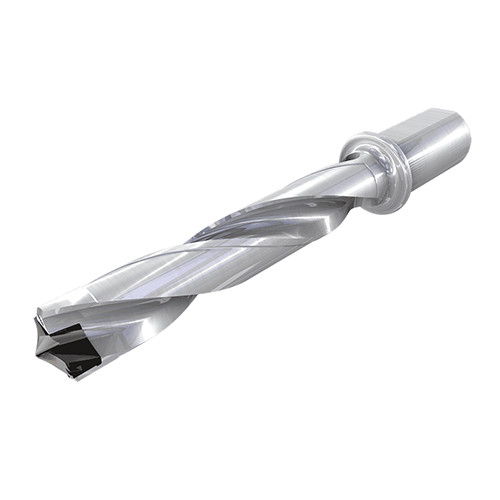

DFN 340-102-32A-3D-IQ

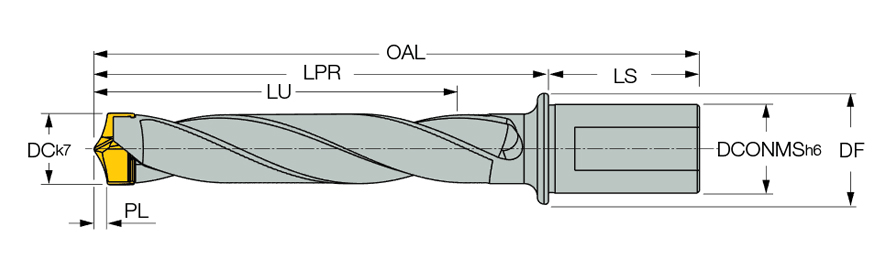

Drill; 34 mm Dia. × 34 mm Min. Dia. × 34.93 mm Max. Dia. × 32 mm Shank Dia. × 201.2 mm OAL × 102 mm LU × 60 mm Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 34 mm | Shank Length (LS) | 60 mm |
| Usable Length (LU) | 102 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | HFP 340 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 7.62 mm |
| Insert Seat Size Code (SSC) | 34.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 34 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 34.93 mm | Body Material | Steel |
| Protruding Length (LPR) | 141.2 mm | Flange Diameter (DF) | 42 mm |
| Functional Length (LF) | 133.58 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Overall Length (OAL) | 201.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
2.385
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
