DSM 0551-275-063A-5D

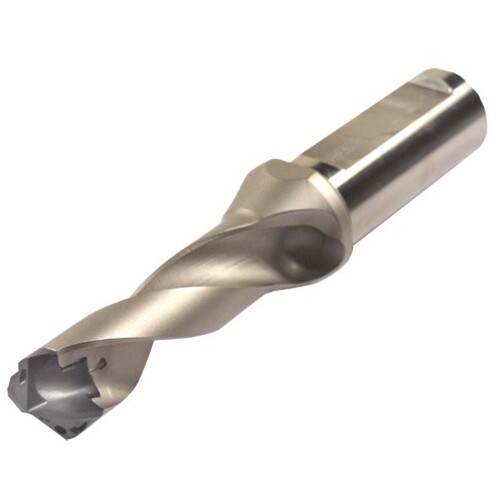

Drill; 0.551″ Dia. × 0.551″ Min. Dia. × 0.587″ Max. Dia. × 5/8″ Shank Dia. × 146.9 mm OAL × 2-3/4″ LU × 1.98″ Shank Length ; 5D ; Series STAW
| Cutting Diameter (DC) | 0.551″ | Overall Length (OAL) | 146.9 mm |
| Usable Length (LU) | 2-3/4″ | Shank Length (LS) | 1.98″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Item Count (CICT) | 1 |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 14.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.551″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.587″ | Flange Diameter (DF) | 0.79″ |
| Protruding Length (LPR) | 3.4″ | Decimal Equivalent | 0.551″ |
| Functional Length (LF) | 145 mm | Body Diameter Reduced (BDRED) | 0.79″ |
Product Features
| Family Description | CHAMDRILLJET 5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions. Do not mount smaller drilling heads than specified range for drill body. |
Shipping Info
Package Weight
0.33
