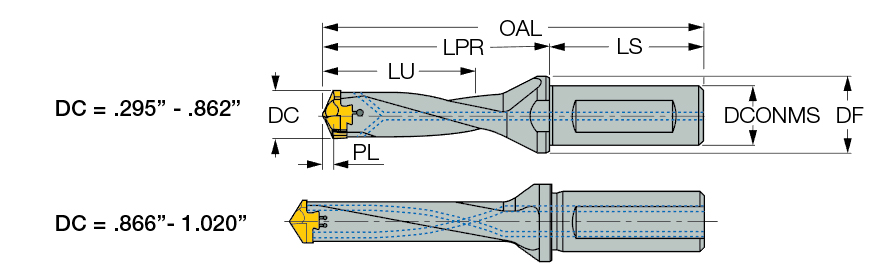

DCM 0295-089-050A-3D
Drill; 0.295″ Dia. × 0.295″ Min. Dia. × 0.311″ Max. Dia. × 1/2″ Shank Dia. × 3.07″ OAL × 0.87″ LU × 1.77″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 0.295″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 0.87″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 075-SG |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Point Length (PL) | 0.054″ |
| Insert Seat Size Code (SSC) | 8.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.295″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.311″ | Body Material | Steel |
| Protruding Length (LPR) | 1.3″ | Flange Diameter (DF) | 0.63″ |
| Functional Length (LF) | 1.246″ | Decimal Equivalent | 0.295″ |
| Overall Length (OAL) | 3.07″ | Body Diameter Reduced (BDRED) | 0.63″ |
| Shank Length (LS) | 1.77″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Package Weight
0.191
