DCN 115-058-16A-5D

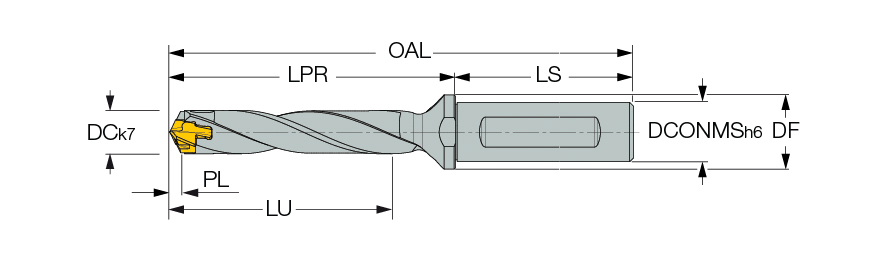

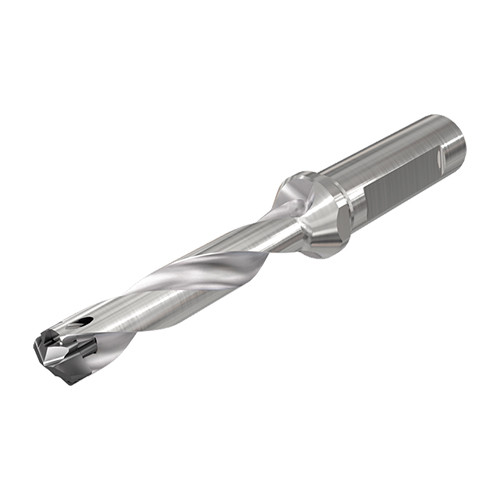

Drill; 11.5 mm Dia. × 11.5 mm Min. Dia. × 11.99 mm Max. Dia. × 16 mm Shank Dia. × 122.1 mm OAL × 59.26 mm LU × 48 mm Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 11.5 mm | Shank Length (LS) | 48 mm |
| Usable Length (LU) | 59.26 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 115 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 1.76 mm |
| Insert Seat Size Code (SSC) | 11.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 11.5 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 11.99 mm | Body Material | Steel |
| Protruding Length (LPR) | 74.1 mm | Flange Diameter (DF) | 20 mm |
| Functional Length (LF) | 72.01 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Overall Length (OAL) | 122.1 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 5xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
