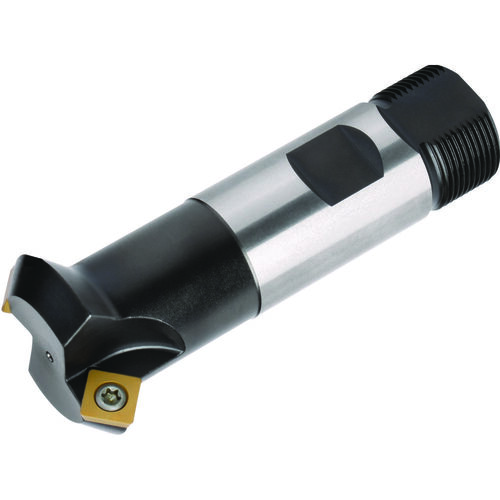

12292510400 W CHAMFER MILL
Indexable End Mill; 27.5 mm Dia. × 6.4 mm LOC × 16 mm Shank Dia. × 75″ OAL × 27 mm LU ; | Threaded | Weldon | Shank ; 45 Degrees
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC/DCX) | 27.5 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Diameter (DC) | 27.5 mm | Usable Length (LU) | 27 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 6.4 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 75″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | | Threaded | Weldon | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2293
