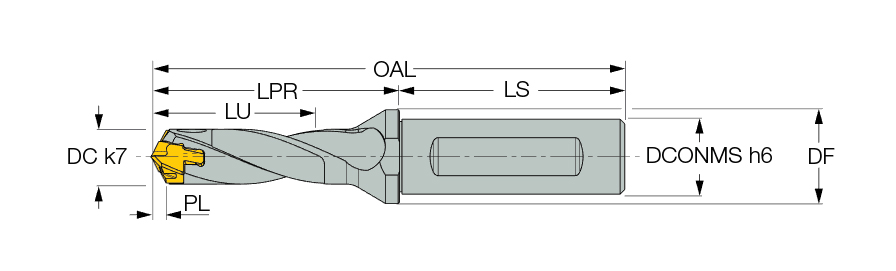

DCN 0374-112-050A-3D
Drill; 0.374″ Dia. × 0.374″ Min. Dia. × 0.393″ Max. Dia. × 1/2″ Shank Dia. × 3.51″ OAL × 1.179″ LU × 1.77″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 0.374″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.179″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 095 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.057″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 9.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.374″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.393″ | Flange Diameter (DF) | 0.63″ |
| Protruding Length (LPR) | 1.74″ | Decimal Equivalent | 0.374″ |
| Functional Length (LF) | 1.672″ | Body Diameter Reduced (BDRED) | 0.63″ |
| Overall Length (OAL) | 3.51″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 1.77″ |
Product Features

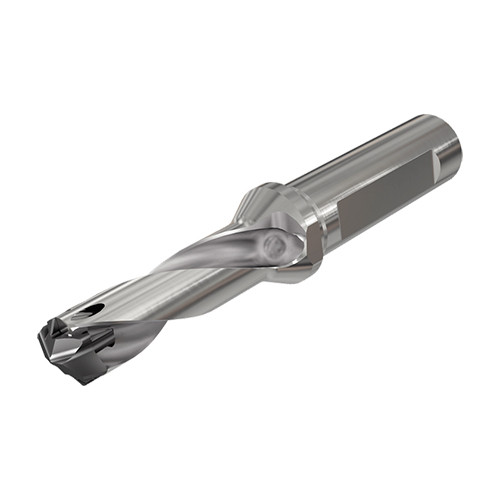

| Family Description | SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.207
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
