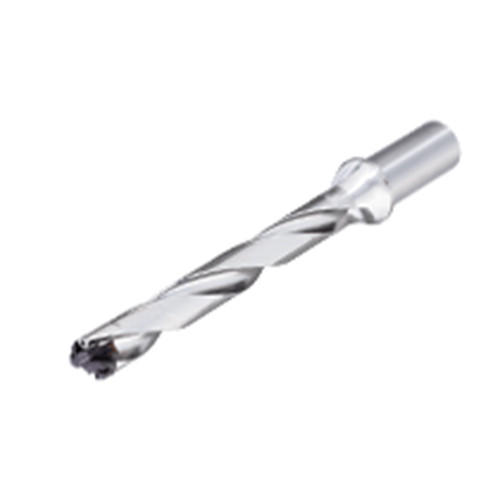

DCN 0531-425-063R-8D

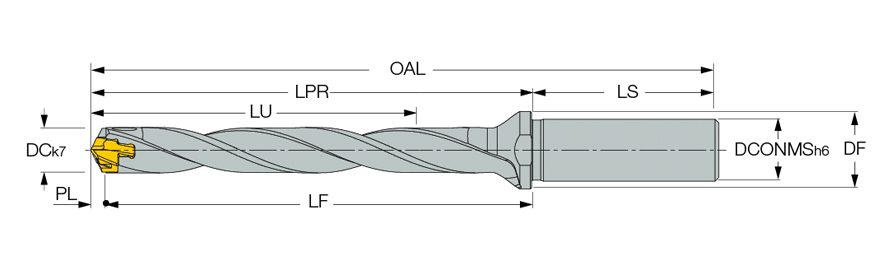

Drill; 0.531″ Dia. × 0.531″ Min. Dia. × 0.55″ Max. Dia. × 5/8″ Shank Dia. × 6.84″ OAL × 4.333″ LU × 1.89″ Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 0.531″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 4.333″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 135 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.081″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 13.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.531″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.55″ | Flange Diameter (DF) | 0.79″ |
| Protruding Length (LPR) | 4.94″ | Decimal Equivalent | 0.531″ |
| Functional Length (LF) | 4.853″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Overall Length (OAL) | 6.84″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.44
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
