DCN 0295-354-0314C-12D

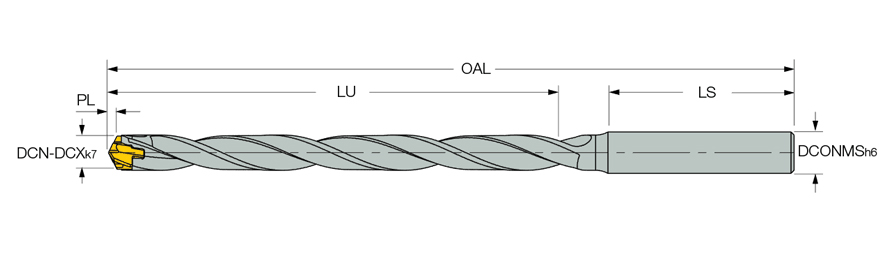

Drill; 0.295″ Dia. × 0.295″ Min. Dia. × 0.315″ Max. Dia. × 0.315″ Shank Dia. × 5.378″ OAL × 3.5866″ LU × 1.417″ Shank Length ; Round Shank ; Series STAW
| Cutting Diameter (DC) | 0.295″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3.5866″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 075 |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Point Length (PL) | 0.0433″ |
| Insert Seat Size Code (SSC) | 7.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.295″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.315″ | Body Material | Steel |
| Protruding Length (LPR) | 3.961″ | Decimal Equivalent | 0.295″ |
| Overall Length (OAL) | 5.378″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.417″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features

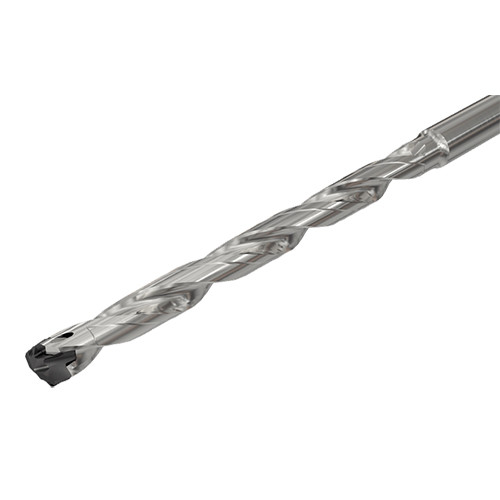

| Family Description | SUMOCHAM 12xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 12xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill The HCP or QCP drilling head may eliminate the need for a pre-hole Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.22
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
