D3N 0748-224-100A-3D

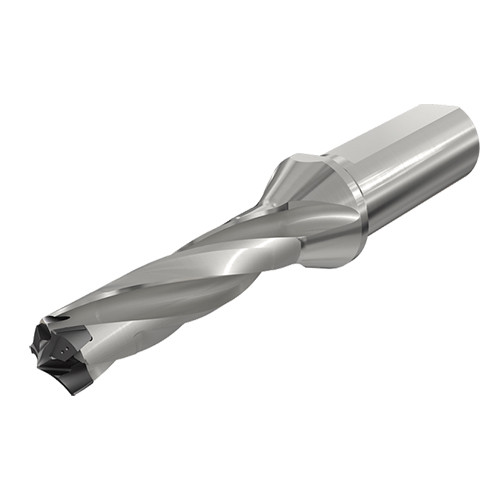

Drill; 0.748″ Dia. × 0.748″ Min. Dia. × 0.783″ Max. Dia. × 1″ Shank Dia. × 6.001″ OAL × 2.406″ LU × 2.2″ Shank Length ; Weldon Shank ; Series STAW

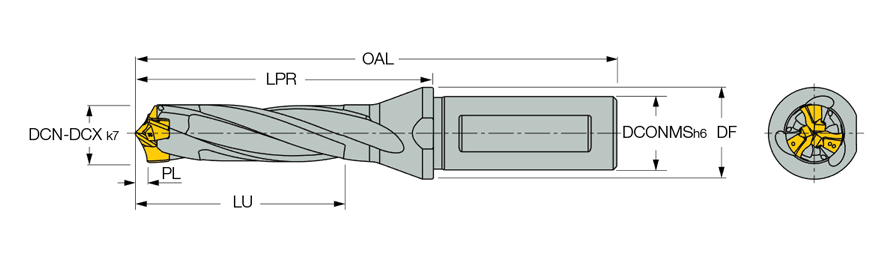

| Cutting Diameter (DC) | 0.748″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.406″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 190-IQ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.1614″ |
| Insert Seat Size Code (SSC) | 19 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.748″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.783″ | Body Material | Steel |
| Protruding Length (LPR) | 3.8″ | Flange Diameter (DF) | 1.26″ |
| Functional Length (LF) | 3.638″ | Decimal Equivalent | 0.748″ |
| Overall Length (OAL) | 6.001″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 2.2″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 3xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
