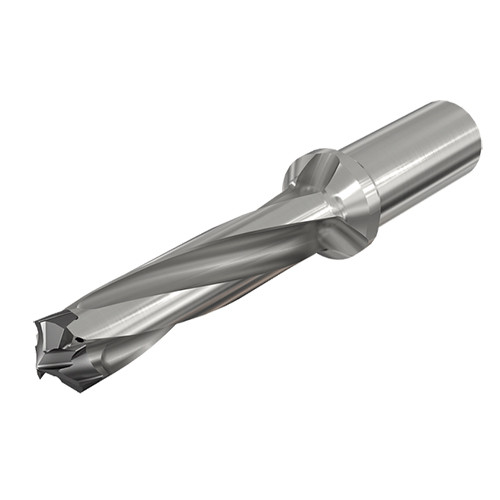

D3N 0571-285-063R-5D
Drill; 0.571″ Dia. × 0.571″ Min. Dia. × 0.587″ Max. Dia. × 5/8″ Shank Dia. × 5.919″ OAL × 2.976″ LU × 1.89″ Shank Length ; Round Shank ; Series STAW

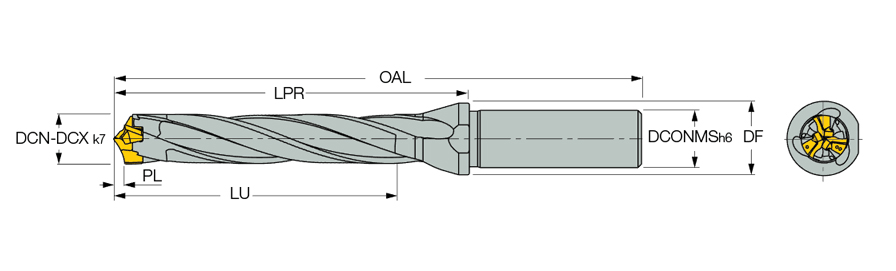

| Cutting Diameter (DC) | 0.571″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 2.976″ | Measurement Type | Inch |
| Shank Type | Round | Master Insert Identification (MIID) | H3P 145 |
| Application | | Drilling | | Point Length (PL) | 0.1221″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 14 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.571″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.587″ | Flange Diameter (DF) | 0.79″ |
| Protruding Length (LPR) | 4.029″ | Decimal Equivalent | 0.571″ |
| Overall Length (OAL) | 5.919″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.89″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.407
