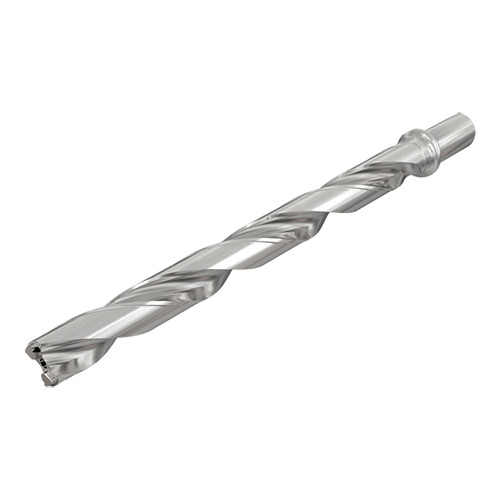

MD-BODY-33-36-400-32A

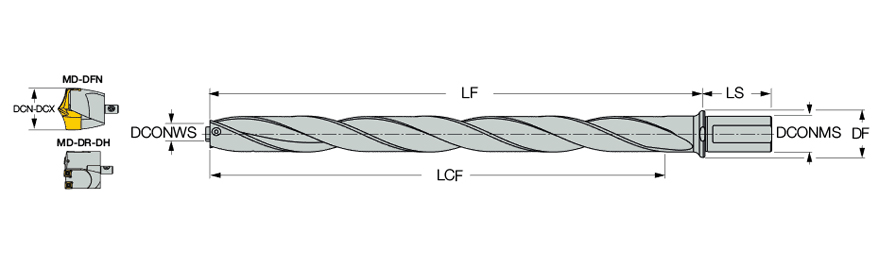

Drill; 33 mm to 36.9 mm Dia. × 32 mm Shank Dia. × 60 mm Shank Length ; Weldon Shank
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Minimum (DCN) | 33 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 36.9 mm | Series/List # | STAW |
| Protruding Length (LPR) | 448.8 mm | Angle | 140 Degrees |
| Functional Length (LF) | 445 mm | Body Material | Steel |
| Shank Length (LS) | 60 mm | Flange Diameter (DF) | 42 mm |
Product Features

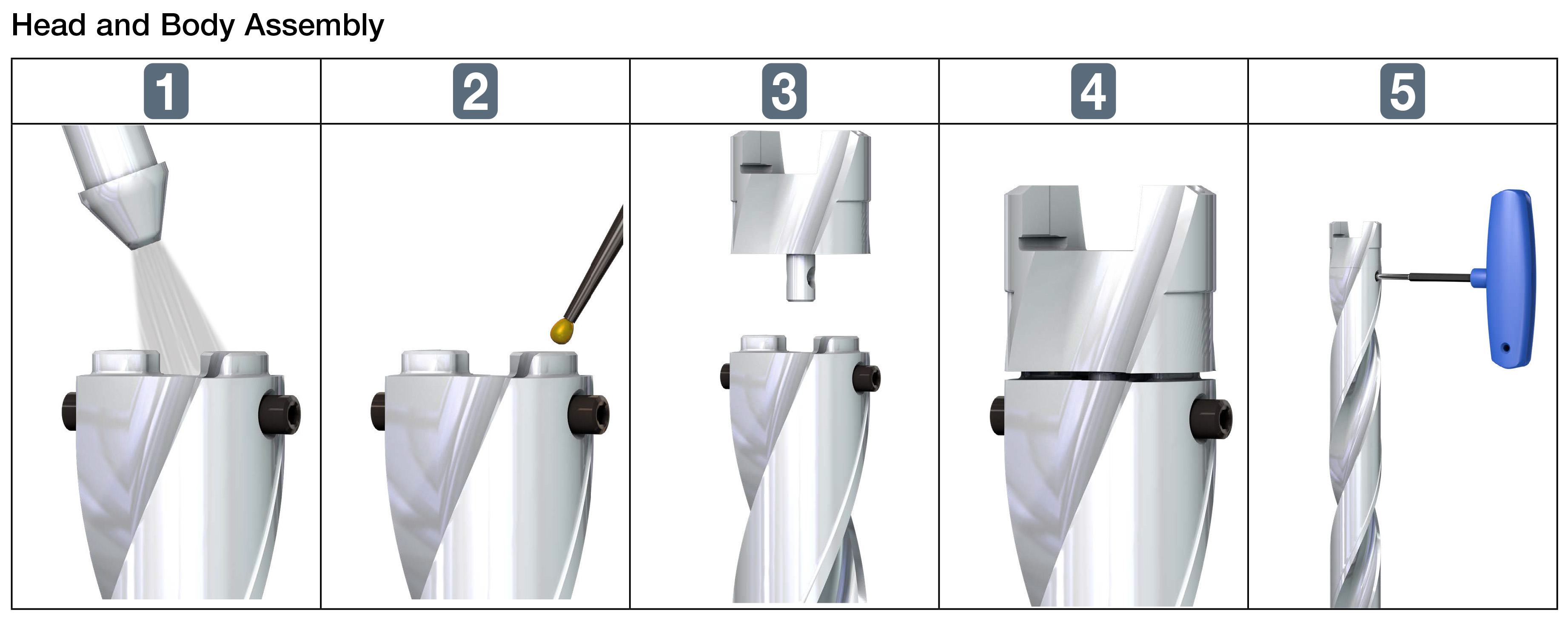

| Family Description | Modular drill bodies, each can carry a variety of exchangeable drilling heads with different diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
4.859
