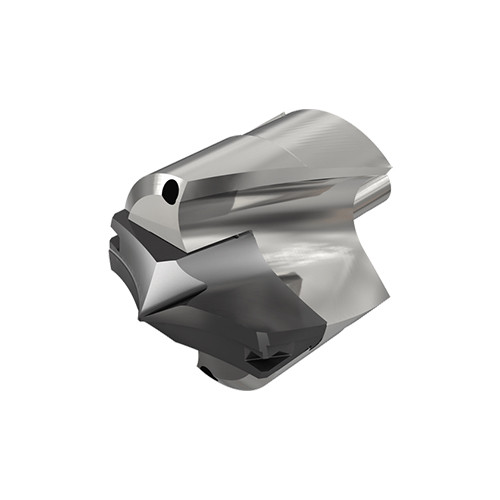

MD-DFN 1457 HEAD
Drill; 1.457″ Dia. × 1.457″ Min. Dia. × 1.492″ Max. Dia. × 0.272″ Shank Dia. ; Series STAW

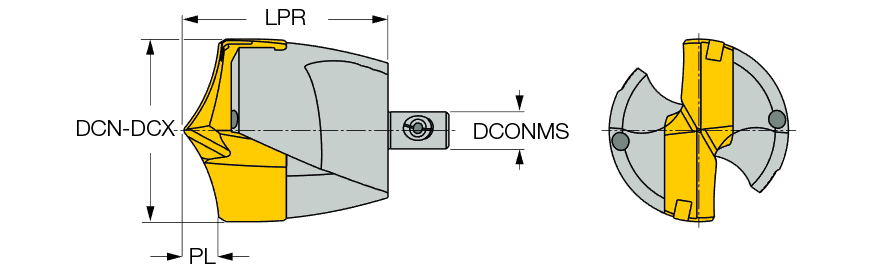

| Cutting Diameter (DC) | 1.457″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.272″ | Master Insert Identification (MIID) | HFP 370-IQ |
| Insert Seat Size Code (SSC) | 37.0 | Point Length (PL) | 0.31653″ |
| Cutting Diameter Minimum (DCN) | 1.457″ | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 1.492″ | Angle | 140 Degrees |
| Protruding Length (LPR) | 1.48″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 1.457″ |
Product Features
| Family Description | Exchangeable drilling heads carry CHAM-IQ-DRILL solid carbide inserts. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.507
