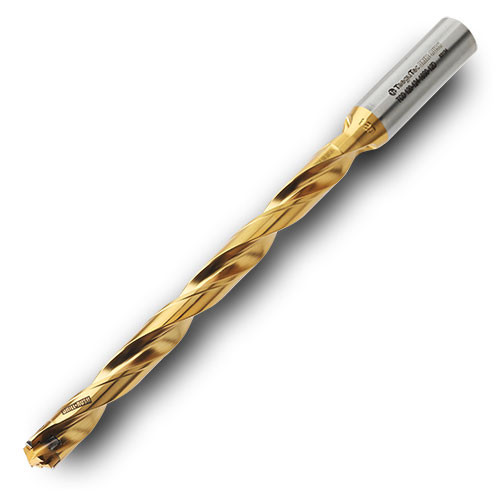

TD1600192S7R01
Drill; 0.6299″ to 0.6654″ Dia. × 3/4″ Shank Dia. × 7.56″ LU × 1.97″ Shank Length ; 12D
| Usable Length (LU) | 7.56″ | Shank Length (LS) | 1.97″ |
| Length Group | 12× | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drill Mill | Drilling | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 16 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.6299″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.6654″ | Body Material | Steel |
| Functional Length (LF) | 10.424″ |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.925
