TC146003018R01

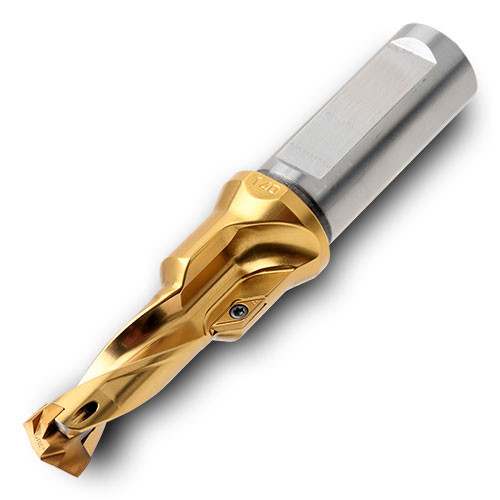

Drill; 0.5709″ to 0.5866″ Dia. × 3/4″ Shank Dia. × 4.41″ OAL × 1.38″ LU × 1.97″ Shank Length
| Usable Length (LU) | 1.4″ | Shank Length (LS) | 1.968″ |
| Length Group | 8D | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Chamfering | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 14.5 | Point Length (PL) | 0.088″ |
| Cutting Diameter Minimum (DCN) | 0.5709″ | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 0.5866″ | Angle | 140 Degrees |
| Functional Length (LF) | 2.355″ | Body Material | Steel |
| Overall Length (OAL) | 4.41″ |
Product Features
| Family Description | Coolant Through Holds +.002/.000 on Hole Diameter | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.485
