YD1100088C0R01

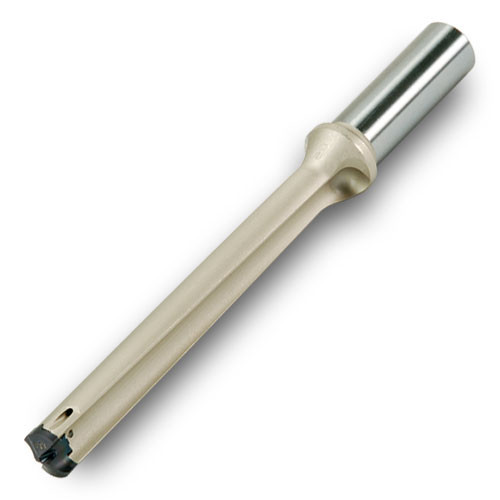

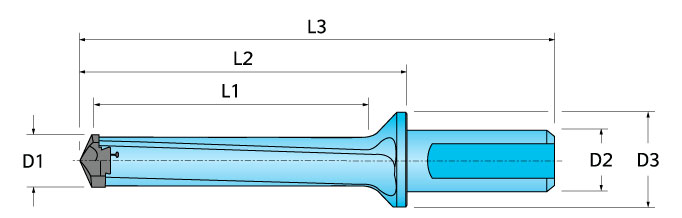

Drill; 0.4331″ to 0.4685″ Dia. × 5/8″ Shank Dia. × 3.46″ LU × 1.89″ Shank Length ; 8D
| Usable Length (LU) | 3.46″ | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 8D | Cutting Item Count (CICT) | 1 |
| Application | | Drill Mill | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 11 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.4331″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.4685″ | Flange Diameter (DF) | 0.79″ |
| Shank Length (LS) | 1.89″ |
Product Features
| Family Description | L:D - 8:1 **OBSOLETE PROUCT LINE** Refer to the following for stocked alternatives: GoldTwist, series TD - 8xD Replaceable Tip Drill | Country of Origin | Israel |
Shipping Info
Package Weight
0.328
