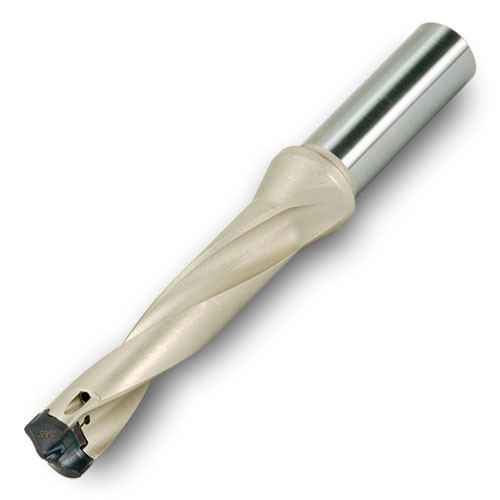

YD0800040B9R01

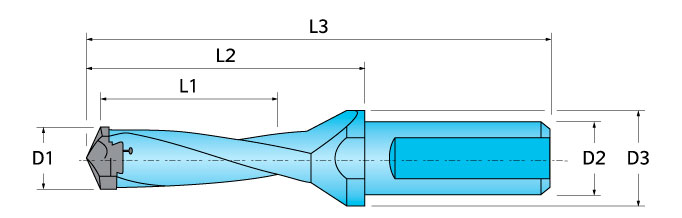

Drill; 0.315″ to 0.3307″ Dia. × 1/2″ Shank Dia. × 1.57″ LU × 1.77″ Shank Length ; 5D
| Usable Length (LU) | 1.57″ | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 5D | Cutting Item Count (CICT) | 1 |
| Application | | Drill Mill | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 8 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.315″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.3307″ | Flange Diameter (DF) | 0.63″ |
| Shank Length (LS) | 1.77″ |
Product Features
| Family Description | L:D Ratio - 5:1 Geometry: Positive **OBSOLETE PRODUCT LINE** Refer to the following for stocked alternatives: GoldTwist, series TD-5xD Replaceable Tip Drill | Country of Origin | Israel |
Shipping Info
Package Weight
0.216
