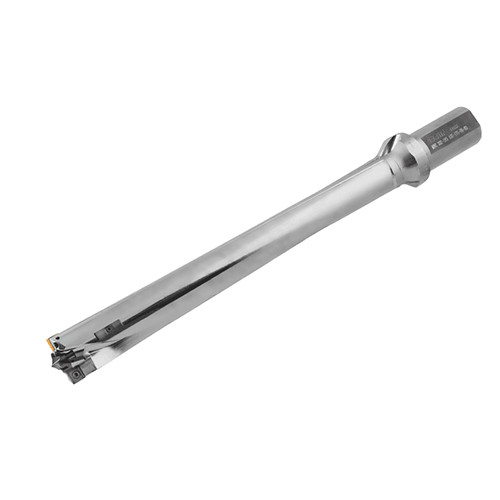

MNC 362-289 A32-190-10-8D

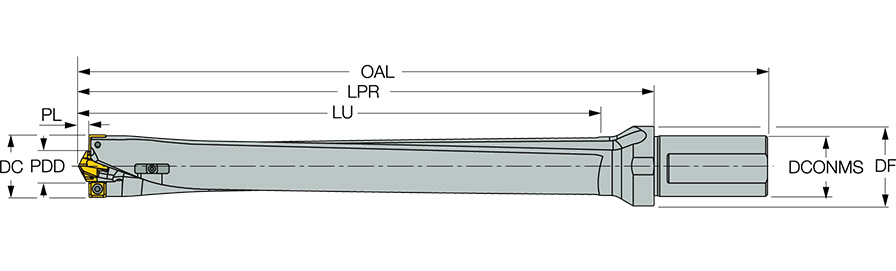

Drill; 36.2 mm Dia. × 32 mm Shank Dia. × 386.8 mm OAL × 294.6 mm LU × 60 mm Shank Length ; Series STAW
| Cutting Diameter (DC) | 36.2 mm | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 294.6 mm | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | SOGT 100408-W |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 5.57 mm |
| Protruding Length (LPR) | 326.8 mm | Series/List # | STAW |
| Overall Length (OAL) | 386.8 mm | Angle | 140 Degrees |
| Shank Length (LS) | 60 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Flange Diameter (DF) | 42 mm |
Product Features
| Family Description | Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 7 and 8xD. High drilling rates, high accuracy and surface finish. | Country of Origin | Israel |
| Remarks | Pre-centering is required when using ICP and ICM inserts Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Package Weight
4.259
Related Documentation
Pre-centering is required when using ICP and ICM inserts Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions
