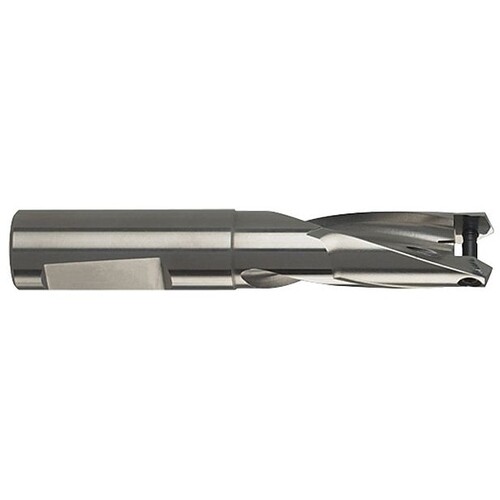

32.005 HT800 1.5 DRILL BODY
Drill; 32 mm to 32.99 mm Dia. × 32 mm Min. Dia. × 32.99 mm Max. Dia. × 31.75 mm Shank Dia. × 172 mm OAL × 55.1 mm LU × 60 mm Shank Length ; 1.5D ; whistle notch Shank
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 32 mm to 32.99 mm | Cutting Diameter Maximum (DCX) | 32.99 mm |
| Usable Length (LU) | 55.1 mm | Overall Length (OAL) | 172 mm |
| Length Group | 1.5D | Shank Length (LS) | 60 mm |
| Shank Type | whistle notch | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | HT 800 Body | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Coating | Nickel |
| Cutting Diameter Minimum (DCN) | 32 mm | Body Material | Tool steel |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
4.1129
