DFN 1378-1102-125A-8D-IQ

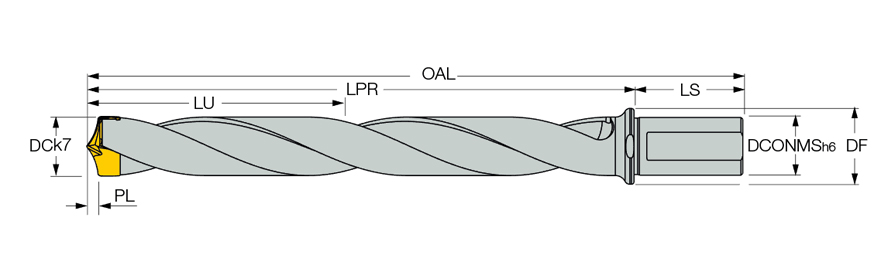

Drill; 1.378″ Dia. × 1.378″ Min. Dia. × 1.413″ Max. Dia. × 1-1/4″ Shank Dia. × 14.97″ OAL × 11.02″ LU × 2.36″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 1.378″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 11.02″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | HFP 350 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.301″ |
| Insert Seat Size Code (SSC) | 35.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 1.378″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 1.413″ | Body Material | Steel |
| Protruding Length (LPR) | 12.61″ | Flange Diameter (DF) | 1.65″ |
| Functional Length (LF) | 12.309″ | Decimal Equivalent | 1.378″ |
| Overall Length (OAL) | 14.97″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
4.177
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
