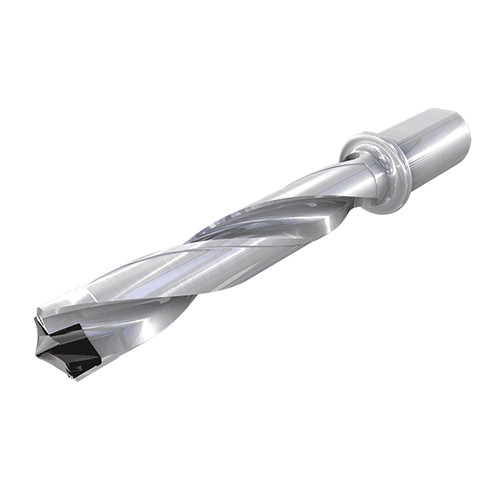

DFN 1457-728-125A-5D-IQ

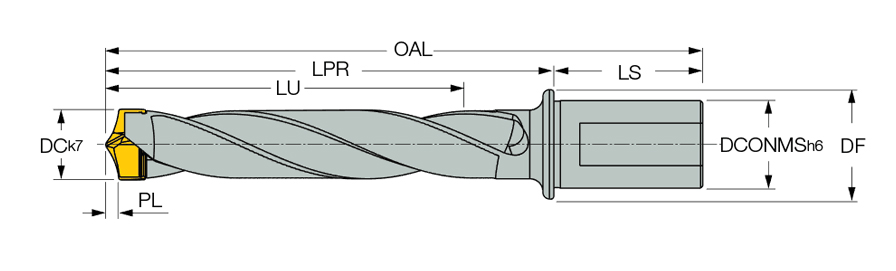

Drill; 1.457″ Dia. × 1.457″ Min. Dia. × 1.492″ Max. Dia. × 1-1/4″ Shank Dia. × 11.32″ OAL × 7.28″ LU × 2.36″ Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 1.457″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 7.28″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | HFP 370 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.317″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 37.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 1.457″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.492″ | Flange Diameter (DF) | 1.65″ |
| Protruding Length (LPR) | 8.96″ | Decimal Equivalent | 1.457″ |
| Functional Length (LF) | 8.643″ | Body Diameter Reduced (BDRED) | 1.65″ |
| Overall Length (OAL) | 11.32″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 2.36″ |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
3.505
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
