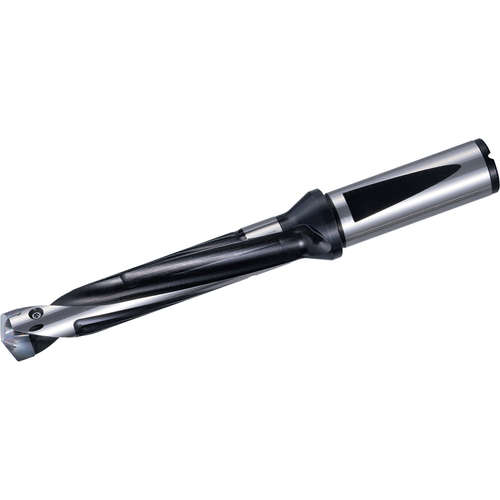

SF0750DRA160M5 5XD REPL
Drill; 0.6299″ to 0.6689″ Dia. × 3/4″ Shank Dia. × 6.2988″ OAL × 3.3461″ LU × 1.9689″ Shank Length ; 5D ; Flange Shank ; Series DRA
| Cutting Diameter (DC) | 0.6299″ to 0.6689″ | Overall Length (OAL) | 6.2988″ |
| Usable Length (LU) | 3.3461″ | Shank Length (LS) | 1.9689″ |
| Length Group | 5D | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flanged | Cutting Direction (HAND) | Right Hand |
| Application | Drilling | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Style | SF DRA |
| Insert Seat Size Code (SSC) | 160 | Master Insert Identification (MIID) | DA1600M- ~ DA1690M- |
| Cutting Diameter Minimum (DCN) | 0.6299″ | Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.6689″ | Body Material | Steel |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
