CD3400170N6R01

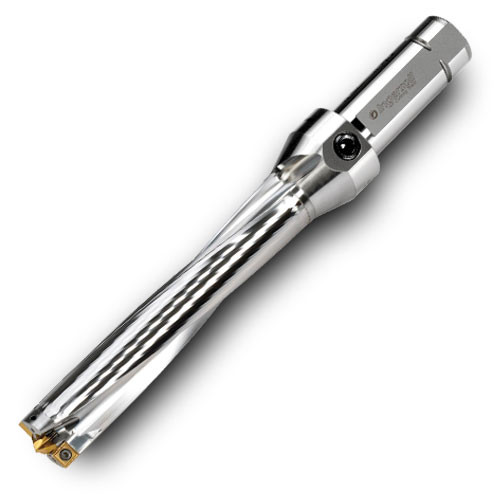

Drill; 1.339″ Dia. × 1-1/4″ Shank Dia. × 12.256″ OAL × 6.693″ LU × 3.16″ Shank Length ; 5D ; Series STAW
| Cutting Diameter (DC) | 1.339″ | Cutting Item Count (CICT) | 0 |
| Usable Length (LU) | 6.693″ | Measurement Type | Inch |
| Length Group | 5D | Effective No. of Teeth | 2 |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.161″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Functional Length (LF) | 9.106″ | Angle | 140 Degrees |
| Overall Length (OAL) | 12.256″ | Body Material | Steel |
| Shank Length (LS) | 3.16″ | Flange Diameter (DF) | 2.165″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Two Effective Holds +.003/-.000 on Hole Diameter Coolant Through Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications | Country of Origin | S.Korea |
Shipping Info
Package Weight
3.197
