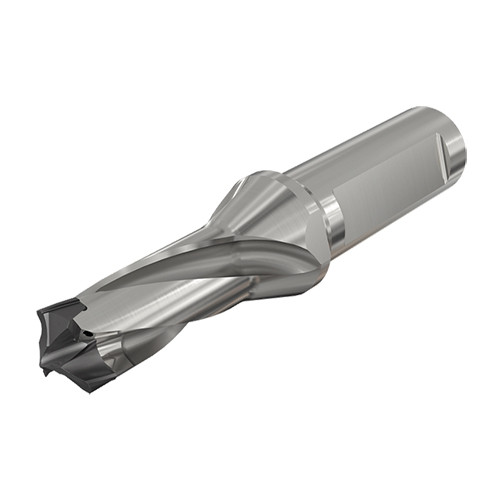

D3N 125-019-16A-1.5D

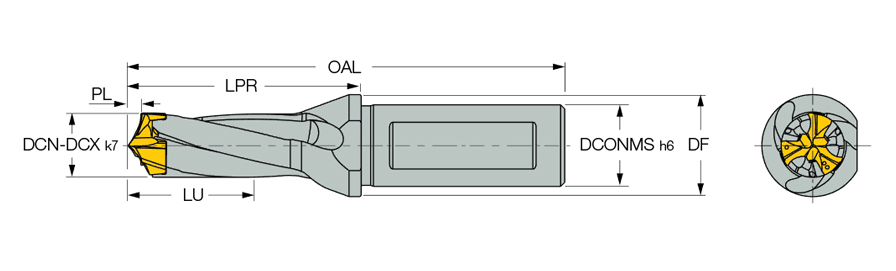

Drill; 12.5 mm Dia. × 12.5 mm Min. Dia. × 12.9 mm Max. Dia. × 16 mm Shank Dia. × 92.42 mm OAL × 21.46 mm LU × 48 mm Shank Length ; Weldon Shank ; Series STAW
| Cutting Diameter (DC) | 12.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 21.46 mm | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 125 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Point Length (PL) | 2.71 mm |
| Insert Seat Size Code (SSC) | 12 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 12.5 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 44.4 mm | Flange Diameter (DF) | 20 mm |
| Overall Length (OAL) | 92.42 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 48 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank, drilling depth 1.5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.01

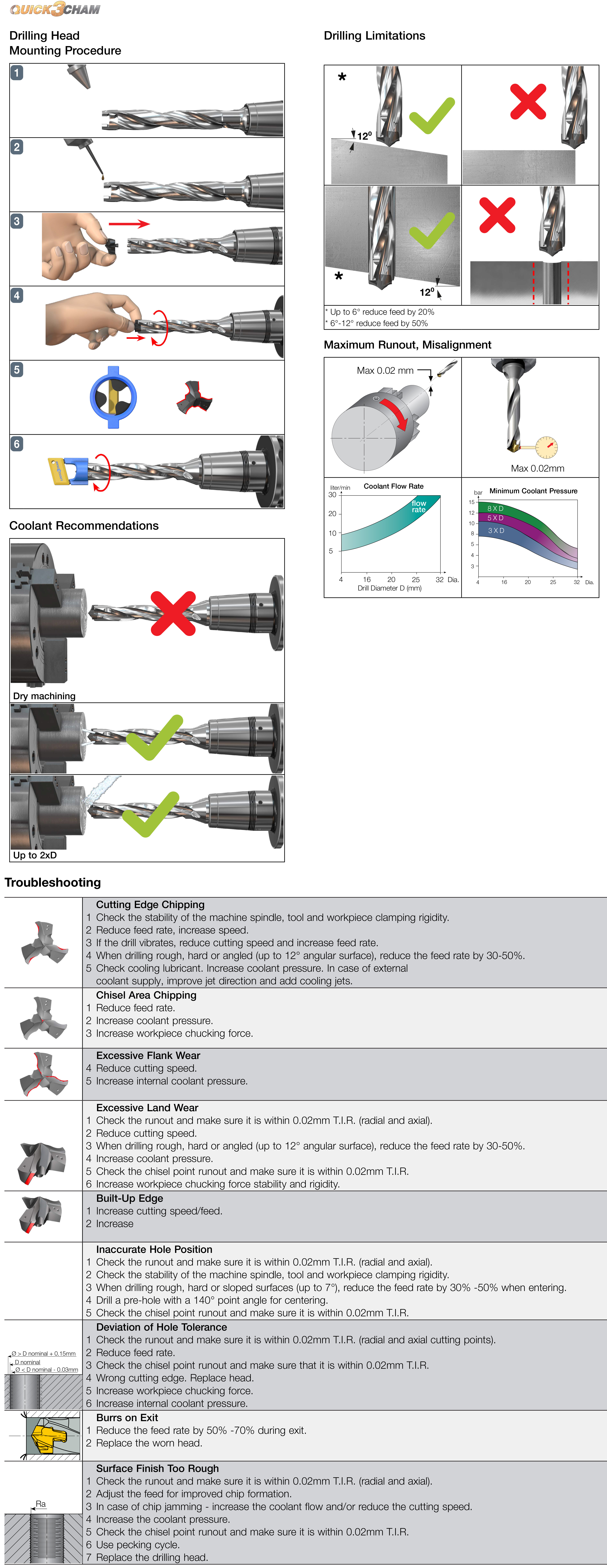

Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
