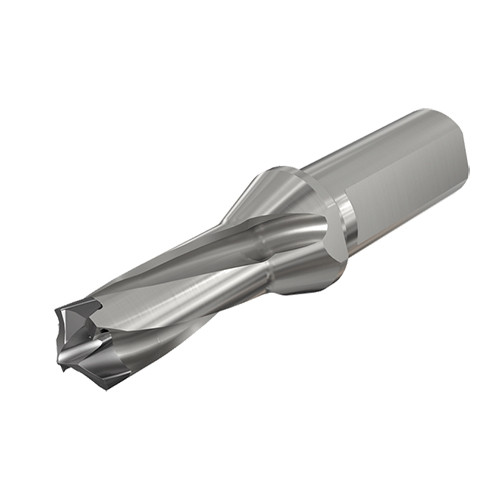

D3N 0945-142-125A-1.5D

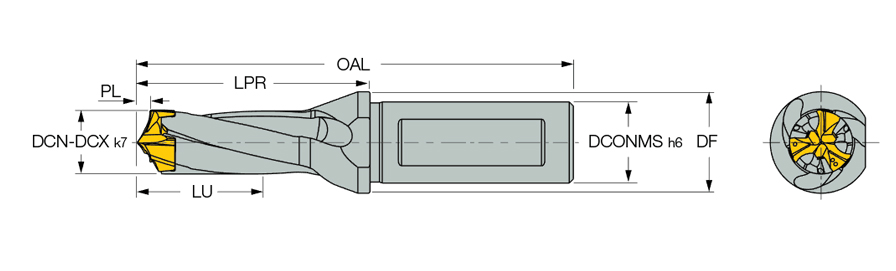

Drill; 0.945″ Dia. × 0.945″ Min. Dia. × 0.98″ Max. Dia. × 1-1/4″ Shank Dia. × 5.73″ OAL × 1.622″ LU × 2.36″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 0.945″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.622″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Weldon | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 0945 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.2051″ |
| Insert Seat Size Code (SSC) | 24 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.945″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.98″ | Body Material | Steel |
| Protruding Length (LPR) | 3.37″ | Flange Diameter (DF) | 1.575″ |
| Overall Length (OAL) | 5.73″ | Decimal Equivalent | 0.945″ |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
1.466
